Fuse & Relay for 2009 Land Rover LR2
No.
Part # / Description / Price
Price

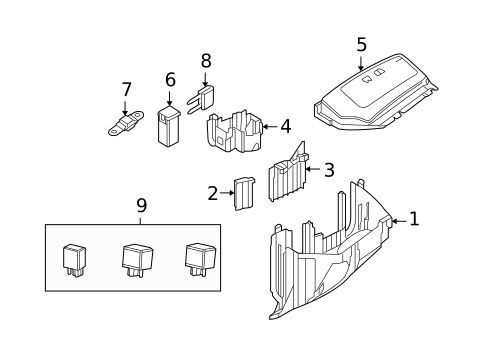

1
Fuse Box
Land-Rover
Land-Rover Notes: PARTS: Part included with engine harness.
Description: Engine compartment.
2
Fuse Box Front Cover Land-Rover
Land-Rover Notes: PARTS: Part included with engine harness.
Description: Engine compartment.
3
Fuse Box Rear Cover Land-Rover
Land-Rover Notes: PARTS: Part included with engine harness.
Description: Engine compartment.
4
Lower Cover Land-Rover
Land-Rover Notes: PARTS: Part included with engine harness.
Description: Engine compartment.
6
$7.62
6
Fusible Link Land-Rover
Land-Rover Description: Engine compartment, 40 amp. Luggage compartment, 40 amp. Fuse box, j case, 40 amp.
$7.62
$7.62
7
Maxi Fuse Land-Rover
Land-Rover Description: Luggage compartment, 60 amp. Instrument panel. 60 amp. Engine compartment. 60 amp.
$5.23
$5.23
7
Maxi Fuse Land-Rover
Land-Rover Description: Engine compartment, 80 amp. Luggage compartment, 80 amp. Instrument panel. 80 amp.
$5.23
$5.23
7
Maxi Fuse Land-Rover
Land-Rover Description: Engine compartment, 100 amp. Luggage compartment, 100 amp (blue).
$5.12
$5.12
8
Fuse Land-Rover
Land-Rover Description: Luggage compartment, 30 amp. Passenger compartment, 30 amp. Instrument panel, 2010-12, 30a. Instrument panel. 30 amp. Engine compartment. 30 amp.
$1.63
$1.63
8
Fuse Land-Rover
Land-Rover Description: Passenger compartment, 25 amp. Luggage compartment, 25 amp. Instrument panel, 2010-12, 25a. Instrument panel. 25 amp. Engine compartment. 25 amp.
$1.71
$1.71
8
Fuse Land-Rover
Land-Rover Description: Luggage compartment, 15 amp. Passenger compartment, 15 amp. Instrument panel, 2010-12, 15a. Instrument panel. 15 amp. Engine compartment. 15 amp.
$1.63
$1.63
No.
Part # / Description / Price
Price

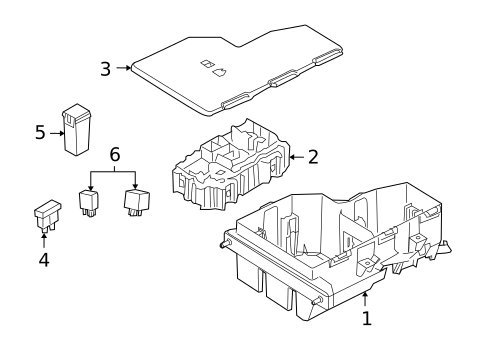

4
Mini Fuse Land-Rover
Land-Rover Description: Luggage compartment, 30 amp. Fuse & relay, auto, 30 amp. Fuse box, auto, 30 amp. Instrument panel, 2003-09, 30a. Luggage compartment, 2010-12, 30a.
$0.90
$0.90
4
Mini Fuse Land-Rover
Land-Rover Description: Luggage compartment, 20 amp. Fuse & relay, auto, 20 amp. Fuse box, auto, 20 amp. Luggage compartment, 2010-12, 20a. Engine compartment, 20 amp.
$0.77
$0.77
4
Mini Fuse Land-Rover
Land-Rover Description: Engine compartment, 15 amp. Luggage compartment, 15 amp. Fuse & relay, auto, 15 amp. Fuse box, auto, 15 amp. Luggage compartment, 2010-12, 15a.
$1.13
$1.13
4
Mini Fuse Land-Rover
Land-Rover Description: Engine compartment, 10 amp. Luggage compartment, 10 amp. Fuse & relay, auto, 10 amp. Fuse box, auto, 10 amp. Luggage compartment, 2010-12, 10a.
$1.10
$1.10
4
Mini Fuse Land-Rover
Land-Rover Description: Engine compartment, 5 amp. Luggage compartment, 5 amp. Luggage compartment, 2010-12, 5a.
$1.13
$1.13
5
Fusible Link Land-Rover
Land-Rover Description: Engine compartment, 40 amp. Luggage compartment, 40 amp. Fuse box, j case, 40 amp.
$7.62
$7.62
5
$7.62
No.
Part # / Description / Price
Price

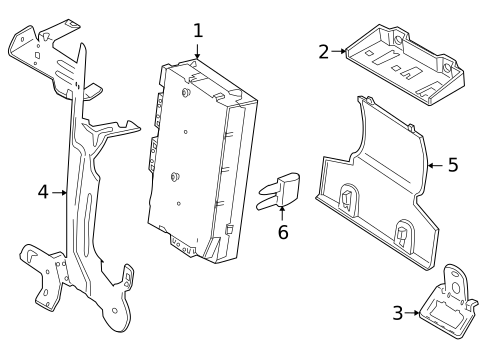

1
MSRP $2,112.52
$2,070.26
6
Mini Fuse Land-Rover
Land-Rover Description: Luggage compartment, 7.5 amp. Instrument panel, 2008-12, 7.5 amp. Engine compartment. 7.5 amp.
$1.76
$1.76
6
Fuse Land-Rover
Land-Rover Description: Luggage compartment, 20 amp. Passenger compartment, 20 amp. Instrument panel, 2010-12, 20a. Instrument panel. 20 amp. Engine compartment. 20 amp.
$1.61
$1.61
6
Fuse Land-Rover
Land-Rover Description: Luggage compartment, 10 amp. Passenger compartment, 10 amp. Instrument panel, 2010-12, 10a. Instrument panel. 10 amp. Engine compartment. 10 amp.
$1.63
$1.63
